高性能一体成型功率电感-MWSC系列
概要
背景和开发目的
产品特点
低功耗，大频宽，转换效率高，体积小，性能更可靠
电磁特性平稳，温升稳定，低噪声，耐冲击的优势
大电流，高稳定性，安全、高效、节能保障
高性能体积比，符合电子产品小型化、高效率的发展趋势
应用

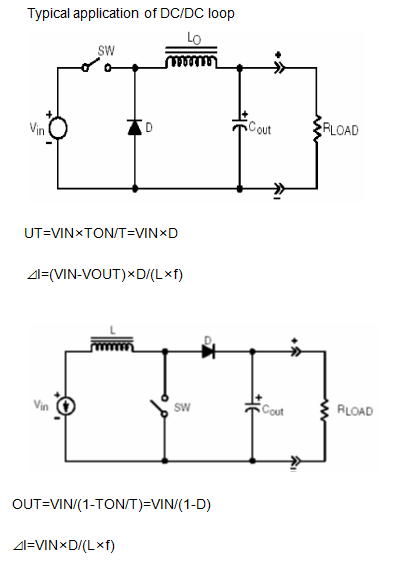

电源转换AC-DC、DC-DC模块，具有耐大电流、电磁特性平稳，温升稳定，低可听噪声，低放射噪声，耐冲击等优势，适用于手机、汽车、航空、通信、电动汽车及充电桩等多领域，在轻薄化智能移动终端产品获得广泛认可和广泛应用。 DC/DC回路的典型应用

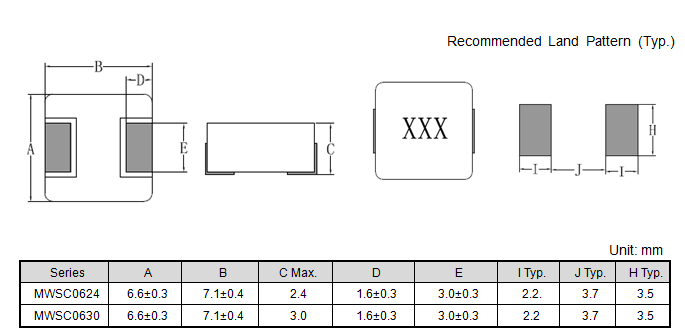

尺寸

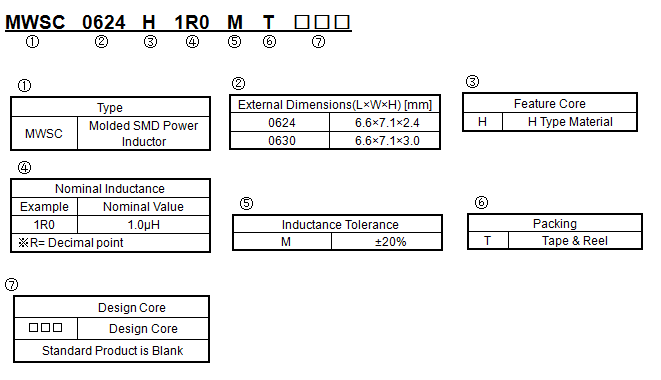

产品型号
电气特性
MWSC0624 Series
Part Number 型号 | Inductance 电感量 | DC Resistance 直流电阻 | Saturation Current 饱和电流 | Heat Rating Current 温升电流 | |||
@100KHz,1V | Max. | Typ. | Max. | Typ. | Max. | Typ. | |
Units单位 | μH | mΩ | A | A | |||
Symbol符号 | L | DCR | Isat | Irms | |||
MWSC0624H1R5MT | 1.5±20% | 17.5 | 15.5 | 12.0 | 15.0 | 7.8 | 9.0 |
MWSC0630 Series
Part Number 型号 | Inductance 电感量 | DC Resistance 直流电阻 | Saturation Current 饱和电流 | Heat Rating Current 温升电流 | |||
@100KHz,1V | Max. | Typ. | Max. | Typ. | Max. | Typ. | |
Units单位 | μH | mΩ | A | A | |||
Symbol符号 | L | DCR | Isat | Irms | |||
MWSC0630HR82MT | 0.82±20% | 5.5 | 5.0 | 16.0 | 19.0 | 12.2 | 14.0 |
MWSC0630H1R0MT | 1.0±20% | 7.8 | 6.8 | 15.0 | 18.0 | 11.3 | 13.0 |
MWSC0630H1R5MT | 1.5±20% | 11.0 | 10.0 | 12.6 | 15.0 | 9.6 | 11.0 |
MWSC0630H2R2MT | 2.2±20% | 17.5 | 15.7 | 11.8 | 14.2 | 8.3 | 9.5 |
MWSC0630H4R7MT | 4.7±20% | 28.0 | 25.8 | 6.0 | 7.1 | 5.2 | 6.0 |
MWSC0630H100MT | 10±20% | 68.0 | 62.1 | 5.1 | 6.1 | 3.5 | 4.0 |
MWSC0630H220MT | 22±20% | 150.0 | 140.0 | 3.4 | 4.0 | 2.0 | 2.3 |
※1 : Rated current: Isat (max.) or Irms(max.), whichever is smaller;
※2 : Saturation Current: Max. Value, DC current at which the inductance drops less than 30% from its value without current;
Typ. Value, DC current at which the inductance drops 30% from its value without current;
※3 : Irms: DC current that causes the temperature rise (ΔT) from 20°C ambient.
For Max. Value, ΔT＜40℃；for Typ. Value, ΔT is approximate 40℃.
The part temperature (ambient + temp. rise) should not exceed 125 °C under worst case operating conditions. Circuit design, component placement, PCB trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified in the end application.
生产
已量产
